Medical imaging · 3D Slicer · DICOM · AI dataset curation
A decade across 3D Slicer, SimpleITK, MONAI, nnU-Net, and DICOM tooling. Most of my pipelines are scripts, because segmentations you can diff are segmentations you can defend.
render_figures.pyFive projects that together cover the full medical-imaging-for-AI pipeline — from raw DICOM through de-identified, QC'd, radiologist-approved training data.
Segmentation · SimpleITK · Slicer SegmentEditor

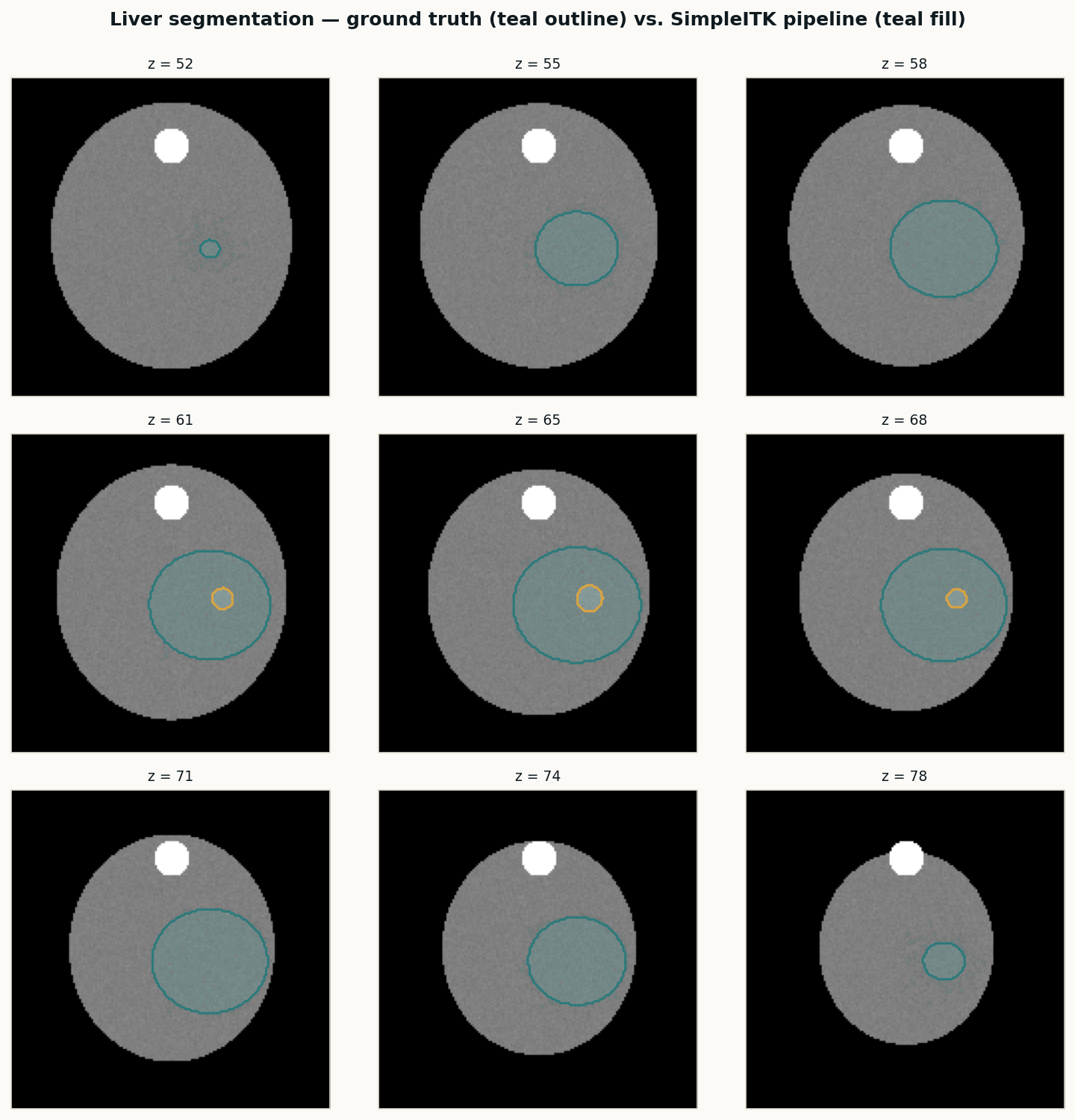

A classical SimpleITK pipeline for body, lungs, bone, and liver — the baseline I run on every new study before handing volumes to nnU-Net or TotalSegmentator. Deterministic, fast, and good enough as a sanity check on AI output.
Read the case study →
nnU-Net · PyTorch · MONAI-compatible
How I train and evaluate a 3D nnU-Net v2 model for MS / glioma lesion segmentation, with 3D Slicer used as the review and correction tool at every step. Includes the metrics that actually matter clinically — lesion-level recall at 3 mm, FP per volume, HD95.
Read the case study →Registration · SimpleITK · BRAINS
Rigid initialisation plus B-spline deformable refinement against Mattes MI. On the synthetic phantom the pipeline drops mean absolute error from 82 HU to 16 HU — an 80 % reduction.
Case study →DICOM · PS3.15 · BIDS
De-identification to the DICOM PS3.15 Basic profile with deterministic SHA-256 pseudonyms, BIDS conversion, and a QC dashboard that flags motion, coverage, and HU-range outliers before they reach the training set.
Case study →3D Slicer · Python scripted module
A ScriptedLoadableModule that wraps the SimpleITK pipeline inside Slicer so a radiologist can run it, compute Dice vs. a reference segmentation, and export DICOM-SEG in three clicks.
Every figure on this page is regenerated by GitHub Actions on every push — never pre-baked. No patient data is required. Clone the repo, run a script, get the same Dice number.
python scripts/python/segmentation_pipeline.pyRuns the full body / lungs / bone / liver pipeline on the synthetic phantom and prints Dice + HD95 per structure.
python scripts/python/registration.pyCentre-of-mass init → rigid multi-res → B-spline deformable. Reports mean-abs-error reduction at each stage.
python scripts/python/deidentify_dicom.pyRuns the Basic Application Confidentiality profile on a synthetic in-memory DICOM and verifies pseudonymisation and UID regeneration.

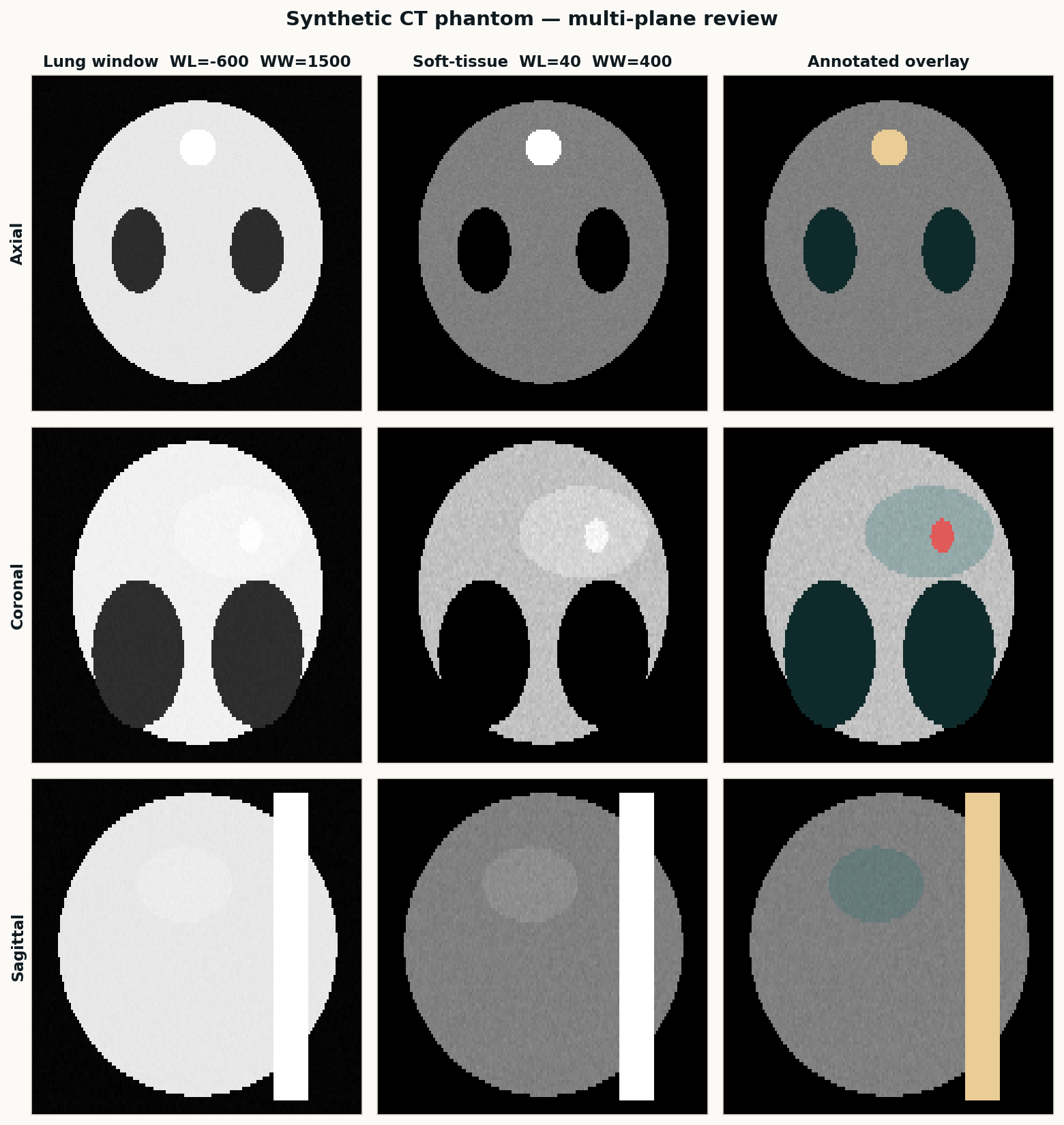

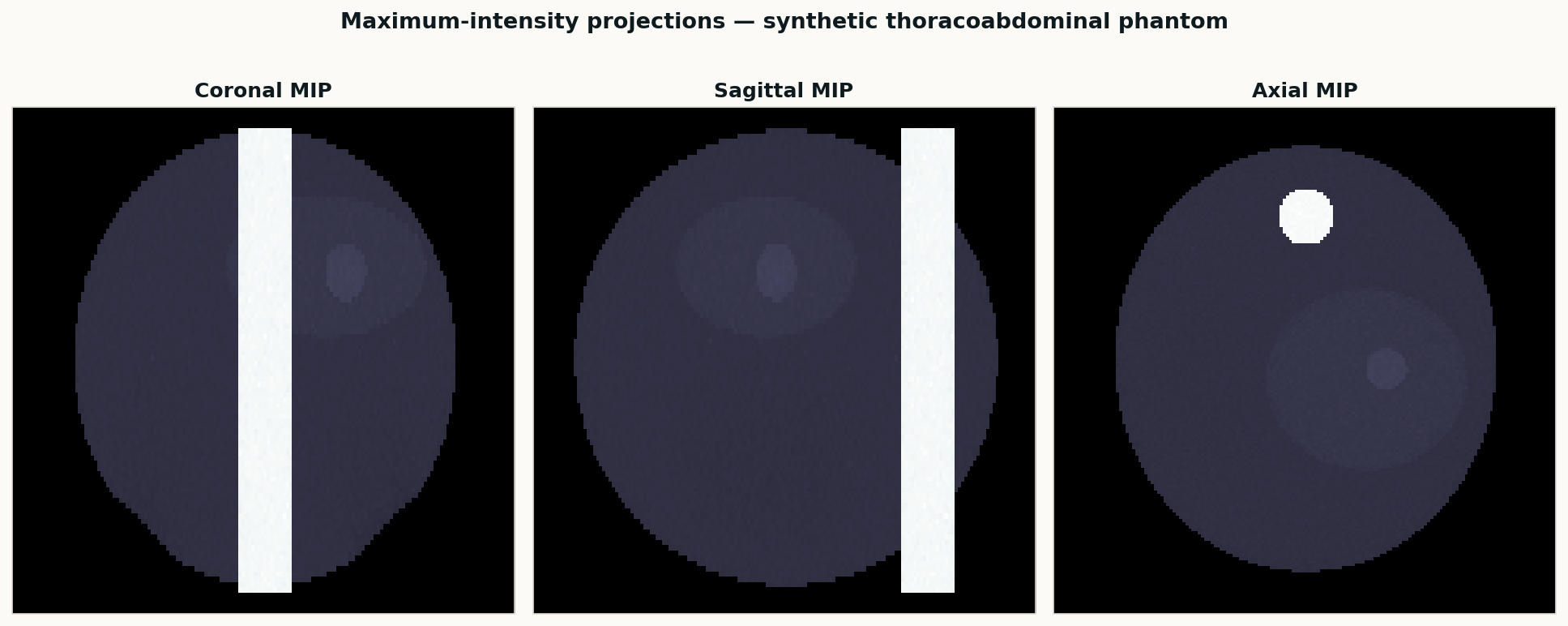

python scripts/python/render_figures.pyRebuilds the slice mosaic, segmentation overlay, MIP triptych, and Dice-curve plots that ship in /docs/assets.
Scripted modules (ScriptedLoadableModule), SegmentEditor, Markups, DICOM browser. Custom extensions shipped to radiologist workstations.
nnU-Net v2, MONAI, TotalSegmentator, SimpleITK classical pipelines. Dice + HD95 + lesion-level recall reporting, cross-validated on held-out folds.
SimpleITK and BRAINS in Slicer. Rigid, affine, B-spline deformable. Mattes MI for multi-modal, NCC for intra-modality.
pydicom, dcmqi, dcm2niix. DICOM-SEG, RT-STRUCT, NIfTI, NRRD, BIDS. PS3.15 de-identification, burned-in-text detection.
QC dashboards, motion scoring, HU-range validation. Deterministic pseudonymisation. HIPAA-aware workflows for multi-site studies.
Python (SimpleITK, numpy, scipy, matplotlib), PyTorch, Docker. Git, GitHub Actions. Every analysis is a script — diffable, reviewable, reproducible.
I'm a senior medical-imaging specialist with ten years across DICOM tooling, 3D Slicer extensions, segmentation, and dataset curation for AI research. I care about reproducible pipelines, honest metrics (Dice is necessary but not sufficient), de-identification done right, and scripts that still produce the same number a year from now.
Open to remote and contract engagements in medical imaging, computer-assisted intervention, or radiology AI. The repository linked below is the living portfolio companion to my CV.
